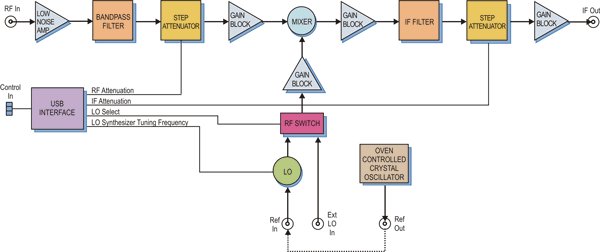

Model 8111 Modular Analog RF Slot Downconverter Series


  • Accepts RF signals from 800 MHz to 3.000 GHz in seven different models
  • Accepts RF input levels from -60 to -20 dBm
  • 225 MHz IF output with 80 MHz output bandwidth
  • Internal OCXO or external 10 MHz frequency reference
  • picture

    Options

  • Opt-001: 800-1200MHz
  • Opt-002: 1100-1500MHz
  • Opt-003: 1400-1800MHz
  • Opt-004: 1700-2100MHz
  • Opt-005: 2000-2400MHz
  • Opt-006: 2300-2700MHz
  • Opt-007: 2600-3000MHz
