Rugged 19"/2 Devices

Video Switch

DVI-D Videoswitch is used to transmit one of five possible video signals to one display unit. There is a rotary switch to select which one of the five video signals to transmit.

-5 x MIL-38999 video Input, 1 x MIL-38999 video output.

-28V DC Power Supply.

-Compliant with MIL-STD-810F

-Compliant with MIL-STD-461E

-Temperature Operating: -20°C to 55°C

-Temperature Storage: -40°C to 70°C

Serial LAN Switch

Serial switch for sharing serial devices in a network (LAN, WAN etc). Software switchable between RS232, RS422 and RS485.

-6 X RS (DSUB, 9 pin).

-1 X LAN RJ45 (10/100 Mbit).

-1 X DC in, 10-32V DC Mil connector

-Designed to meet MIL-STD-810F, MIL-STD-461E, RE102.

6-port Fiber Switch

6-port Fiber Switch.

-6 X Fiber SC (100MBit, 1300nm).

-2 X RJ45 LAN.

-1 X DC in, 10-32V DC Mil connector

-Designed to meet MIL-STD-810F, MIL-STD-461E, RE102.

14-port Switch

14-port Lan switch.

-Unmanaged Layer 2 switch.

-14 X RJ45 (10/100 Mbit) Rugged Amphenol.

-1 X DC in, 10-32V DC Mil connector

-Designed to meet MIL-STD-810F, MIL-STD-461E, RE102.

Power over Ethernet Switch

8-port LAN switch with Power Over Ethernet on all 8 channels.

-8 X RJ45 (10/100 Mbit) Rugged Amphenol.

-1 X DC in, 10-32V DC Mil connector.

-Designed to meet MIL-STD-810F, MIL-STD-461E, RE102.

Router

Based on CISCO3251MAR and FESMIC320. Copper and fiber connections for WAN and LAN Ports.

E0 router, WAN (MAR3251):

-1 X Console port DB9.

-1 x RJ45.

-1 x SC fiber multimode 1300nm.

E1 switch, LAN (FESMIC3201):

-1 X RJ45.

-3 x SC fiber multimode 1300nm

-1 X DC in, 10-32V DC Mil connector.

-Designed to meet IP54, MIL-STD-810F, MIL-STD-461E, RE102, Army Ground.

VoIP Router

Analog VoIP Router with 2 telephone connections.

-1 x Fiber SC, 100 Mbit, 1300nm

-1 x RJ45, 100 Mbit.

-2 x Voice Port RJ11.

-1 X DSUB 9-p, Console.

-1 X DC in, 10-32V DC Mil connector.

-Designed to meet IP54, MIL-STD-810F, MIL-STD-461E, RE102.

UIDM

19”/2 version of Innovative Concepts UIDM® V2. Please see www.innocon.com for more information about IDM technology.

-2 x Radio, D38999.

-1 x HMC Fiber LAN 100Mbps.

-1 X DC in, 10-32V DC Mil connector.

-Designed to meet MIL-STD-810F, MIL-STD-461E. RE102.

Server/Client

Intel 1,66 GHz Core 2 Duo, 2GB RAM, up to 4GB RAM, 224 MB VGA RAM.

-Rich IO ports:2 X SC fiber, 1300nm, 100MB/s; LAN; RS232; VGA; DC In.

-1 X External SATA I/O for 19”/2 RAID.

-1 X DVI, USB/PS2 for LCD/Keyboard or KVM.

-1 X RS 232 for communication with UPS.

-Conductive Cooling; internal SATA, rotating or SSD.

-Designed to meet IP54, MIL-STD-810F, MIL-STD-461E.

RAID

Up to 4 SATA 2,5” HDD.

-Heater for all 4 drives.

-Raid settings available: 0,1,10.

-MIL-Connectors.

-Designed to meet IP54, MIL-STD-810F, MIL-STD-461E, RE102, Army Ground.

Power Panel

-1 X DC in, 10-32V DC, ITS3100A10SL-3P.

-6 X DC out, ITS4102R10SL-3S-CRM.

-Max output per channel 10A.

-Max output total 20A.

-Designed to meet MIL-STD-810F, MIL-STD-461E, RE102.

UPS

-1 X DC in 10-32V DC, Mil connector.

-1 X DC out Mil connector.

-Autodetection.

-Designed to meet MIL-STD-810F, MIL-STD-461E.

LCD-KVM

19”/2 LCD-KVM is a compact LCD in 19”/2 format with built in 2 channel DVI-switch. The display is stored inside of the unit and slides out.Source select switch on the frontside.LED indication for which source is currently activated. Designed to work with our 19”/2 Server/Computer but works just as good to any other DVI source.

-Display size: 6.4".

-Resolution: 640 x 480.

-LED backlight.

-Keys for ON/OFF, Backlight Up, Backlight Down, Source & OSD Menu.

-2 x Mil 38999 connectors.

-1 X DC in, 10-32V DC Mil connector.

-Designed to meet MIL-STD-810F, MIL-STD-461E, RE102, Army Ground.

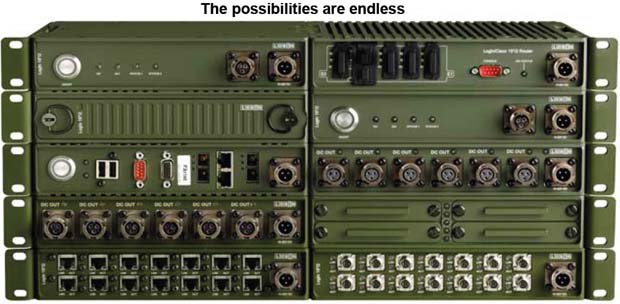

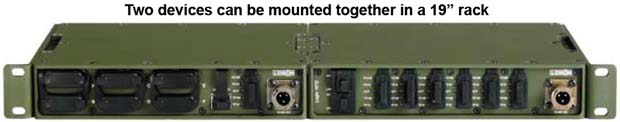

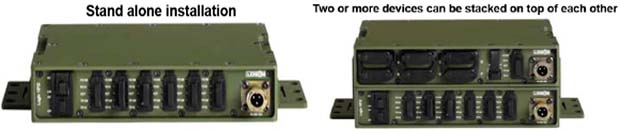

19"/2 Devices can be mounted in an innovative way.
