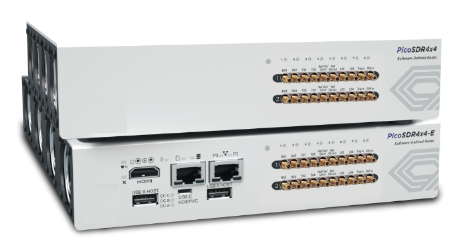

Stream6000RF RF Record and Playback System


    Stream6000 is a turn-key RF record and playback system ideal for Radar, Software Radio, Beam-forming and MIMO communication etc. applications.

    RF Front End Specifications

  • - RF Input/output range: 70MHz to 6GHz
  • - Instant Signal Bandwidth: 200KHz to 56MHz
  • - Gain: 0 to 74.5dB
  • - Noise Figure:
    7 dB @200MHz to 4 GHz
    10dB @4GHz to 6 GHz
  • - OP1dB: +18dBm

    • Record and Playback Specifications

  • - 4Ch Record/Playback at bandwidth up to 56MHz each
  • - 4Ch@10MHz Recording or Playback
  • - 2Ch @ 20Mhz Recording or Playback
  • - 1Ch @40MHz Recording or Playback
  • - Record /Playback in 16bit I/16bit Q data format
  • - Intuitive GUI and display signal in Time/Frequency
  • - Linux OS

    • Stream6000 support RF input/output signal frequency range from 70MHz to 6GHz, the instant bandwidth is up to 56MHz. Comparing to traditional super heterodyne RF Up/Down converters, it uses a RFIC which has excellent signal sensitivity and noise figure, and supports gain from 0 to 74.5dB; it supports signal bandwidth from 200KHz to 56MHz. The RF wideband transmission dynamic range is up to 66dB. Through using RFIC, it significantly reduces system size, weight and power consumption, and reduces total cost of ownership.

    It is based on 10+ years of experience in data recording technology, and its key focus is on data continuity, signal fidelity and system quality. This system has passed stringent acceptance test and provides user with a high fidelity signal acquisition system. picture

    Fig 1. Stream 6000 System Block Diagram

    Leveraging high quality and comprehensive signal acquisition products, Stream series offers customers a complete of line of turn-key solutions for different sampling rate, channel count and resolution requirements. It can customize to user's different requirements. picture

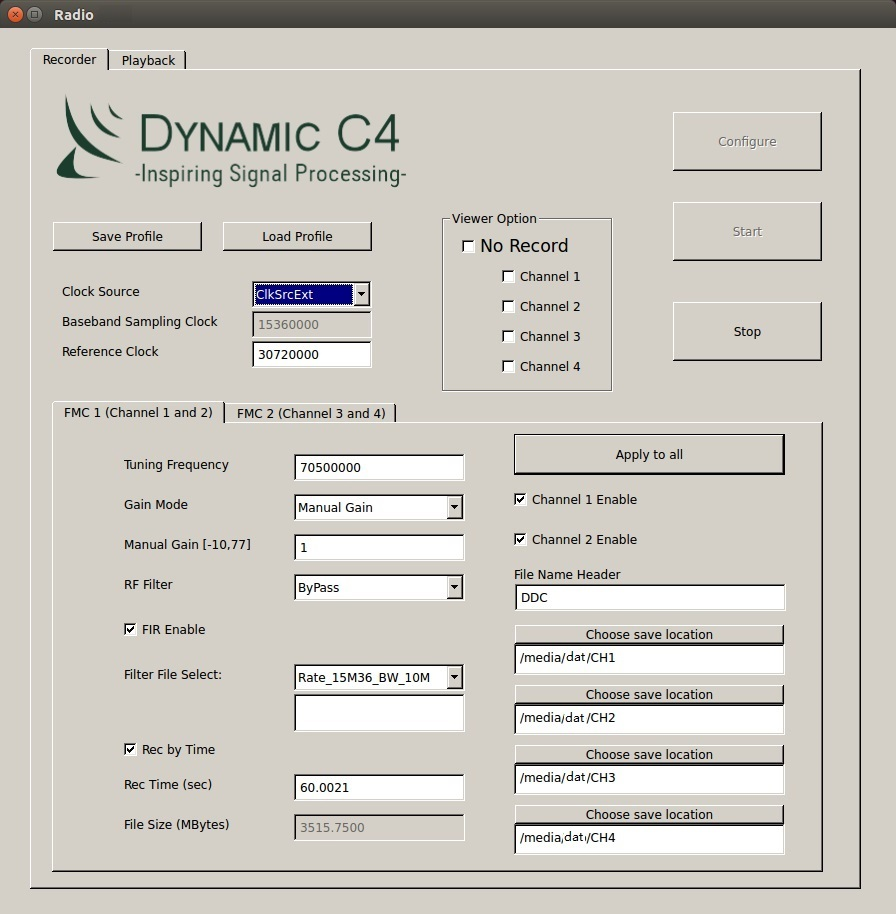

    Fig 2: Stream6000 Control GUI

    Stream Series Data Recorder and Playback Solution
    Product Description
    Stream200 Record and Playback 3Ch 16bit 200MHz ADC Record (with DDC)
    2Ch 16bit 400MHz DAC Playback(with DUC)
    Stream500 Record and Playback 2Ch 12bit 500MHz ADC/14bit 400MHz ADC Record
    2Ch 16bit 500MHz DAC Playback
    Stream1800 Record 2Ch 12bit 1.8GHz ADC Record
    1Ch 12bit 3.6Ghz ADC Record
    Stream3000 sFPDP Record and Playback 4Ch/8Ch sFPDP Record and Playback
    Stream5000 Aurora Record and Playback 4Ch/8Ch Aurora Recorder and Playback
    Stream6000 RF Record 4Ch RF Record/Playback
    Instant Bandwidth Up to 56MHz
    WaveGen1250 Playback 4Ch 16bit 1.25GHz DAC Playback
