Stream5000 Aurora Recorder and Playback System


    Stream5000 is a turn-key Aurora record and playback system ideal for transferring digital data over fiber optical/copper from remote.

    Features and Specifications of Record

  • - Link speed: 1.0625Gbps, 2.125Gbps, 3.125Gbps, 4.25Gbps
  • - Configured as Record or Playback on each port
  • - Fiber Optical Interface
  • - Record into single or multiple files, easy for file management
  • - Save and Load Record Profiles for ease of operation
  • - Pattern data generation for data playback
  • - User notes input for recording mission records

    • It is based on 10+ years of experience in data recording technology, and its key focus is on data continuity, signal fidelity and system quality. This system has passed stringent acceptance test and provides user with a high fidelity signal acquisition system.

    Leveraging high quality and comprehensive signal acquisition products, Stream series offers customers a complete series of turn-key solutions for different sampling rate, channel count and resolution requirements. It supports Windows OS as standard, and Linux as an option. picture

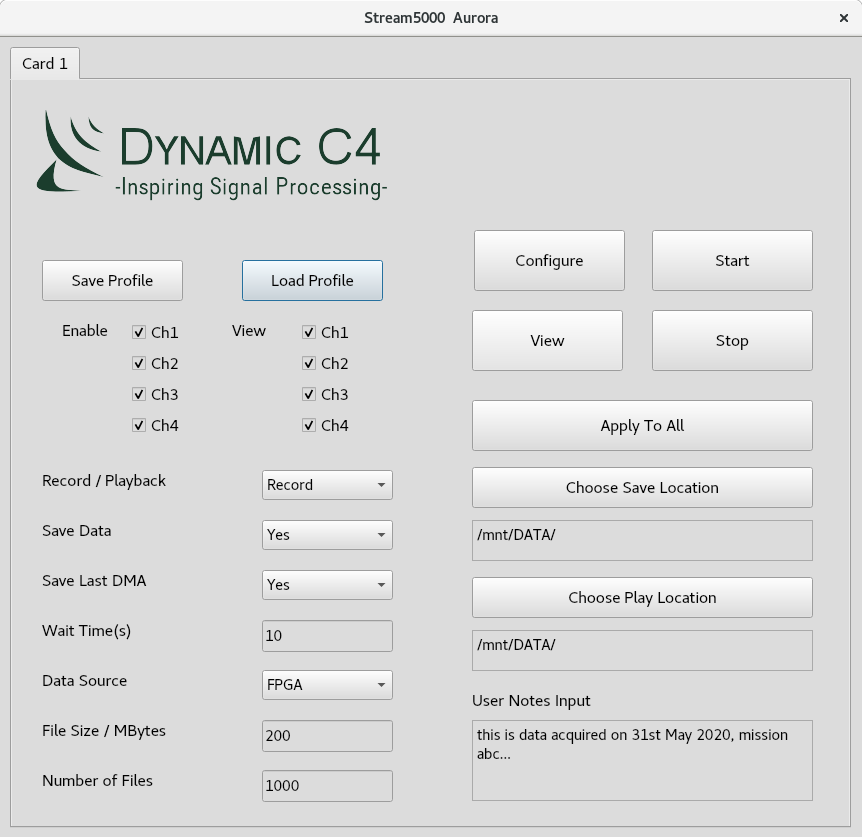

    Fig 1. Aurora Record/Playback GUI

    In Stream5000, it can record or playback 4ch / 8ch Aurora digital data using fiber optical interface. It supports link speed 1.0625Gbps, 2.125Gbps, 2.5Gbps, 3.125Gbps or 4.25Gbps by software control.

    Stream5000 can record into single or multiple small files, which makes it easy for recording file management. All the data recorded are guaranteed no data loss.

    Stream Series Data Recorder and Playback Solution
    Product Description
    Stream200 Record and Playback 3Ch 16bit 200MHz ADC Record (with DDC)
    2Ch 16bit 400MHz DAC Playback(with DUC)
    Stream500 Record and Playback 2Ch 12bit 500MHz ADC/14bit 400MHz ADC Record
    2Ch 16bit 500MHz DAC Playback
    Stream1800 Record 2Ch 12bit 1.8GHz ADC Record
    1Ch 12bit 3.6Ghz ADC Record
    Stream3000 sFPDP Record and Playback 4Ch/8Ch sFPDP Record and Playback
    Stream5000 Aurora Record and Playback 4Ch/8Ch Aurora Recorder and Playback
    Stream6000 RF Record 4Ch RF Record/Playback
    Instant Bandwidth Up to 56MHz
    WaveGen1250 Playback 4Ch 16bit 1.25GHz DAC Playback
